PMD Series - Seal-less Magnetic Pumps
- Home
- Products
- Pump
TAHA

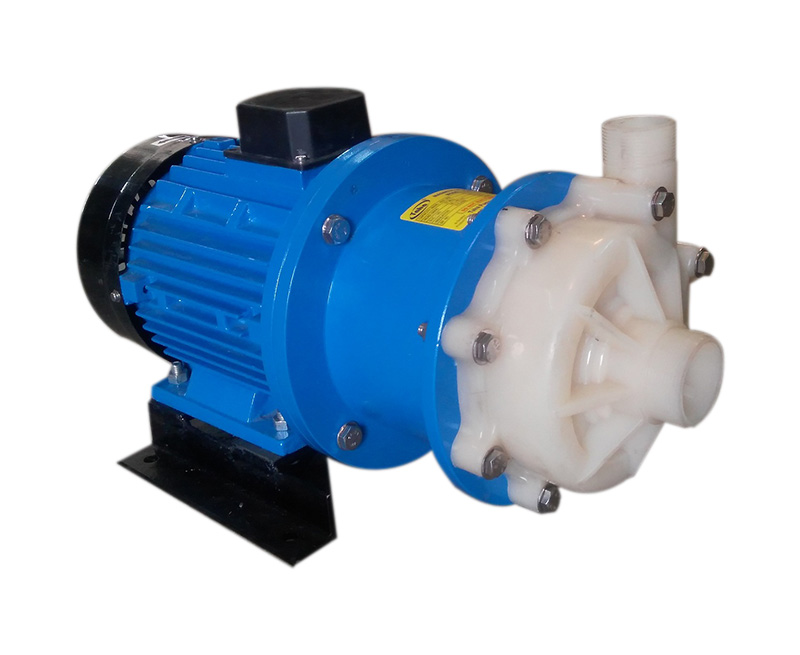

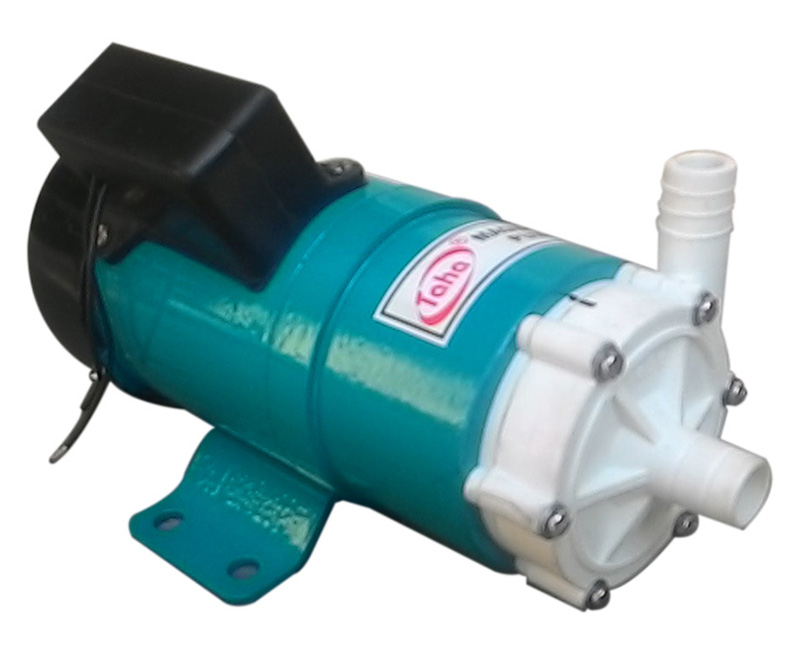

Series PMD : Magnetic Drive pumps in PP & PVDF construction
These pumps are 100% Leak Proof and ideally suitable for handling corrosive chemicals, toxic and fuming liquids, acids, electroplating chemicals, dyes, solvents, petrol, kerosene, pharmaceutical and food syrups etc.
These pumps are 100% Leak Proof Magnetic Drive pumps. There is no shaft seal used and the impeller is provided the rotation with the help of Magnetic drive. High Power permanent rare earth Magnets are used in magnetic drive arrangement which gives high mechanical efficiency with zero slippage.
All PMD Magnetic Drive Pumps are available in Monoblock type only with Std TEFC motor and Flame Proof motors
Material of Construction : GFRPP (Reim Forced Poly Propylene) , PVDF (polyvinylidene fluoride)
Operating Temp : PP upto 70 deg C . PVDF upto 100 deg C
- 100% Leak Proof Pumps
- No Shaft Seal to maintain, replace
- High Efficiency due to permanent magnet power coupling
- Simple design, easy to operate & maintain
- Very useful for handling highly corrosive chemicals, plating chemicals, toxic & fuming liquids
- Capacity from 10 LPM upto 570 LPM
- Head upto 32 mtrs.
- Moc in PP, SS-316 & PVDF
